Crystal Film Screen Series

LED display is a very widely used high-tech display in recent years equipment, with high clarity, stable quality, long life, display function flexible features, very suitable for text, graphics and multimedia the broadcast of the show.


Full-color LED display can be used to play current news,entertainment information,commercial advertisements, film and television animation and other various media types of content, from and achieve audio-visual integration effect.


The company's crystal film screen series products are a new type of transparent LED display field products, the application of the company's unique patented technology, in the special transparent the conductive circuit and LED light-emitting components are made on the bright material and formed high transparent LED display. Mainly used in government administrative halls,storefront shop window, shopping mall advertising display, hotel lobby display, etc....


Because the product itself is highly transparent, beautiful, easy to use and other characteristics, deep by the majority of customers need and use.

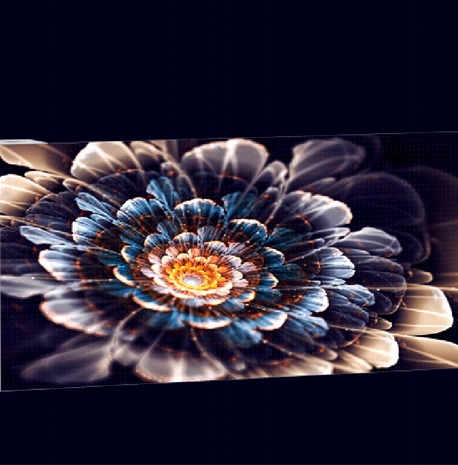

crystal film screen series 001
crystal film screen series 001

Specifications of Crystal Film Screen Series


Product model

KX-TZ-P0606-C(1000X240)


1

Pixel point parameter


LED lamp type

Solid crystal

Distance between points

cross:6.25mm vertical:6mm

Pixel composition

RGB


2

Module parameter


Module resolution

160*40dot

Module size

1000mm×240mm×1mm











3

Box parameter


Box resolution

160*40dot

Module distribution

1×1

Flatness

≤0.1mm

Case size

1000mm×240mm

Module weight

1Kg/PCS

Installation mode

Glass installation, customized according to customer requirements











4

Screen parameter


Dot density

26666Dot/ m²


luminance(6500K)

≤1500cd/ m² tunable

Visual Angle

170°/170°

Bending radius

Minimum bending radius 1M

Chroma uniformity

±0.003 Cx,Cy within

Maximum contrast

4000:1

IP

IP40


















5

Control parameter


Signal color Processing bit

Red, green and blue ≥16bit each

Driving mode

Constant-current performance

Frame change  frequency

60 frames/SEC high brush support 3D: 120 frames/SEC

Refresh rate

≤3840Hz

Screen color temperature

2000K~9500K tunable

Brightness control

Manual/automatic/program control

Pixel correction

It is equipped with point by point correction of brightness and chroma

Control mode

ASynchronous control

Control distance

Super Category 5 twisted-pair cable, over 100 meters using optical fiber transmission

Software interface

Windows

Signal input

Data cable















6

Running parameter


Operating voltage

AC220V/110V  50~60Hz

Peak power

≤150W/ m²

Average power

40W/ m²~60W/ m²

LED life

100,000 hours

Discrete runaway point

≤0.001, The factory is 0

Blind spot rate

≤0.001, The factory is 0

Temperature rise

≤5℃

Ambient temperature

-30℃~60℃

Ambient humidity

10% to 90% RH, no condensation





KX-TZ-P0606-C       (1000X240)

W

1000mm

W1

61mm

H

240mm

T

35mm

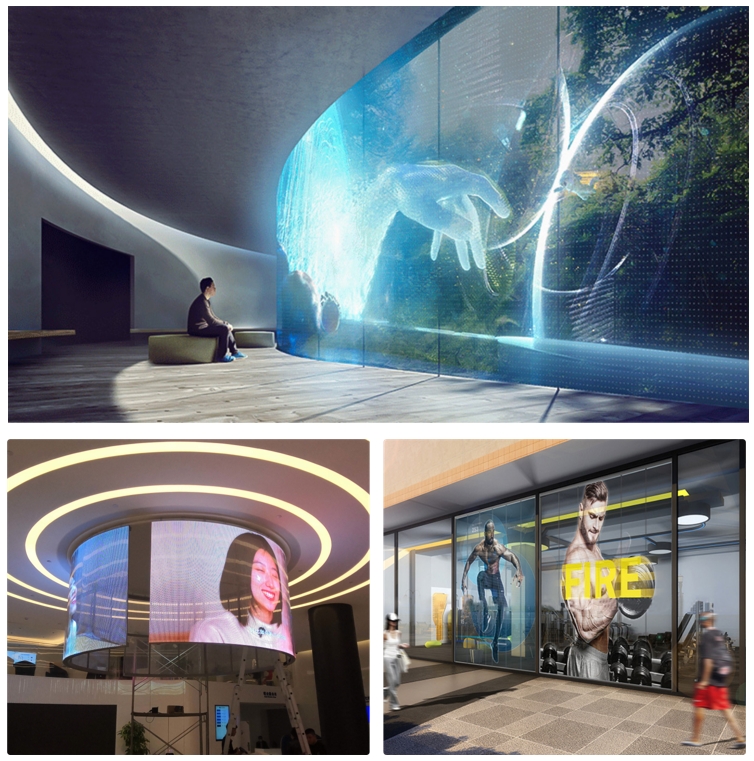

Display the renderings
