The KEYTECHLED Indoor Smart LED Screen offers a seamless setup with automatic screen connection and no debugging required, featuring an integrated infrared sensing chip for enhanced performance. With its ultra-light, ultra-thin design and magnetic installation, it ensures easy assembly and superior durability. Ideal for high-quality indoor displays, this innovative screen guarantees exceptional flatness and strength.
Check out more details and discover how the KEYTECHLED Indoor Smart LED Screen can elevate your display needs today!
No debugging is required & automatic screen connection
Industry's first integrated infrared sensing chip around the box body.
Highly integrated & hard connected
The power supply, HUB, and receiver card are integrated into a three-in-one board, with no internal connections.
Ultra-light and ultra-thin & quick installation
9mm thick all aluminum box, magnetic installation, front, and rear maintenance, easy to assemble and disassemble.
Whole machine delivery & better flatness
The overall design of the die-casting frame ensures the flatness between modules and the strength of the box body.

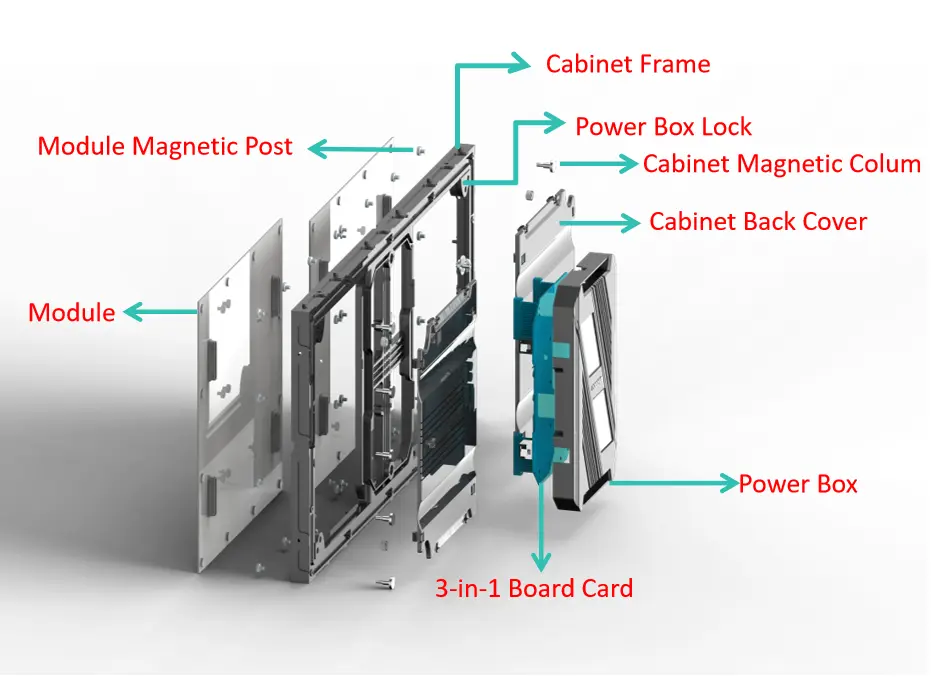

Module: The module is 320x320 in size, with four connector positions, including two infrared probes
Module magnetic column -one module has 12 M4 magnetic columns, and one box has 24 magnetic columns
Cabinet frame - cabinet frame using polymer materials, with good strength and toughness and other characteristics

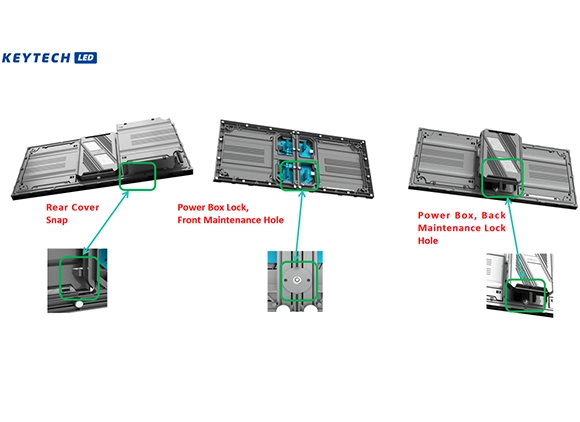

Powerbox lock - use metal locks, can be convenient to dismantle the power box before and after
Cabinet magnet column - one box using an 8 M4 large magnet column, can quickly install the box
Cabinet back cover - the use of plastic materials, cost savings while reducing the weight of the box, the use of snap mounting easily to dismantle the installation
Power supply box - plastic material, reduce the weight of the box
Three-in-one board: power signal design in the same board, can save costs, easy to install
