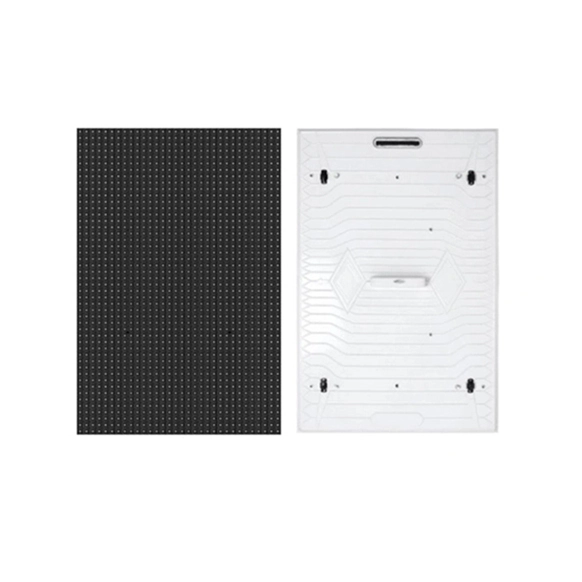

KT5.7 Common Cathode Full Color LED Display

The KT5.7 Outdoor Full Color LED Display module is designed for high-performance outdoor advertising and event applications. Featuring a pixel pitch of 5.7mm, it delivers sharp and vibrant visuals with a wide viewing angle of 140° horizontally and 120° vertically. The P5.7 LED display module is built with high-quality profile aluminum, offering both durability and a lightweight design. With an IP66 rating, it is fully weatherproof and suitable for various outdoor environments.
This P5.7 SMD LED display screen module for outdoor advertising offers a high contrast ratio of 17,000:1, ensuring clear and bright images even under direct sunlight, with brightness levels ranging from 5,500 to 12,000 cd/m² depending on the configuration. It supports front and rear maintenance for easy servicing, and boasts a lifespan of up to 100,000 hours. The KT5.7 outdoor LED display panel is energy-efficient with low power consumption and can be used in temperatures from -10°C to 50°C.
Explore the full specifications to learn how the KT5.7 outdoor LED display module can enhance your outdoor digital display needs!

kt5 7 common cathode outdoor full color led display

KT5.7 Outdoor Full Color LED Display Specifications

As a leading manufacturer and supplier of outdoor LED display screens, KEYTECHLED produces and supplies outdoor LED advertising displays and modules of different specifications. Check out the details of our P5.7 SMD LED outdoor display screen module below. Contact us if you have any questions.

Item	Common anode	Common Cathode Ⅰ	Common Cathode Ⅱ	Common Cathode Ⅲ
Pixel Composition（SMD）	2727
Pixel Pitch（mm）	5.7
Module Resolution（W× H）	84*56
Module Size（ mm）	48032015
Module Weight（Kg）	2
Module Qty/Cabinet	2*3
Cabinet Size（ mm）	96096090
Cabinet Resolution（W× H）	168*168
Cabinet Area（ m²)	0.92
Cabinet Weight（Kg）	24.5
Cabinet Material	Profile Aluminum
Cabinet Density（dot/m²)	30625
IP Rating	IP66
Single Dot Brightness Amended Single Dot Color Amended	Yes
White Balance Brightness（cd/m² )	5500	5500	7000	12000
Color Temperature（K）	6500-9000
Visual Angle（H/V）	140°/120°	140°/120°	80°/70°	80°/70°
Contrast Ratio	17000：1
The Max Power Consumption（W/m²)	700	500	280	450
Average Power Consumption（W/m²)	235	168	76	150
Input Voltage （V）	200-240
Maintenance Method	Front and Rear
Frequency	50&60
IC Driving（Constant Current）	1/7s
Grayscale	It is available within 65536
Refreshing Ratio（Hz）	3840
Color Processor	16bit
Lifespan（h）	100000
Work Temperature/Humidity	-10℃-50℃/10%RH-98%RH (Non Condensing)
Storage Temperature/Humidity	-20℃-60℃/10%RH-98%RH (Non Condensing)

Packing List of KT5.7 Outdoor Full Color LED Display

Packing List	Quantity	Unit
LED Display	1	Set
User Manual	1	pcs
Approved Certificate	1	pcs
Warranty Card	1	pcs
Construction Notification	1	pcs

Features of KT5.7 Outdoor Full Color LED Display

High Brightness: 5,500 to 12,000 cd/m², ensuring excellent visibility in bright outdoor environments.
Wide Viewing Angles: 140° horizontal and 120° vertical for an optimal viewing experience from various angles.
IP66 Rating: Highly durable, weather-resistant design suitable for outdoor conditions.
High Contrast Ratio: 17,000:1 for sharp, vivid images.
Energy Efficient: Low average power consumption (235W/m²) with high energy efficiency.
Long Lifespan: 100,000 hours, ensuring a reliable, long-term investment.
Maintenance Flexibility: Easy front and rear maintenance for convenience.
Grayscale: 16-bit color processing for smooth, true-to-life color rendering.
Color Temperature: Adjustable between 6,500K and 9,000K for flexible display quality.

This P5.7 SMD outdoor LED display module for advertising is engineered to deliver exceptional outdoor viewing performance with robust durability and energy efficiency.
